Product Description

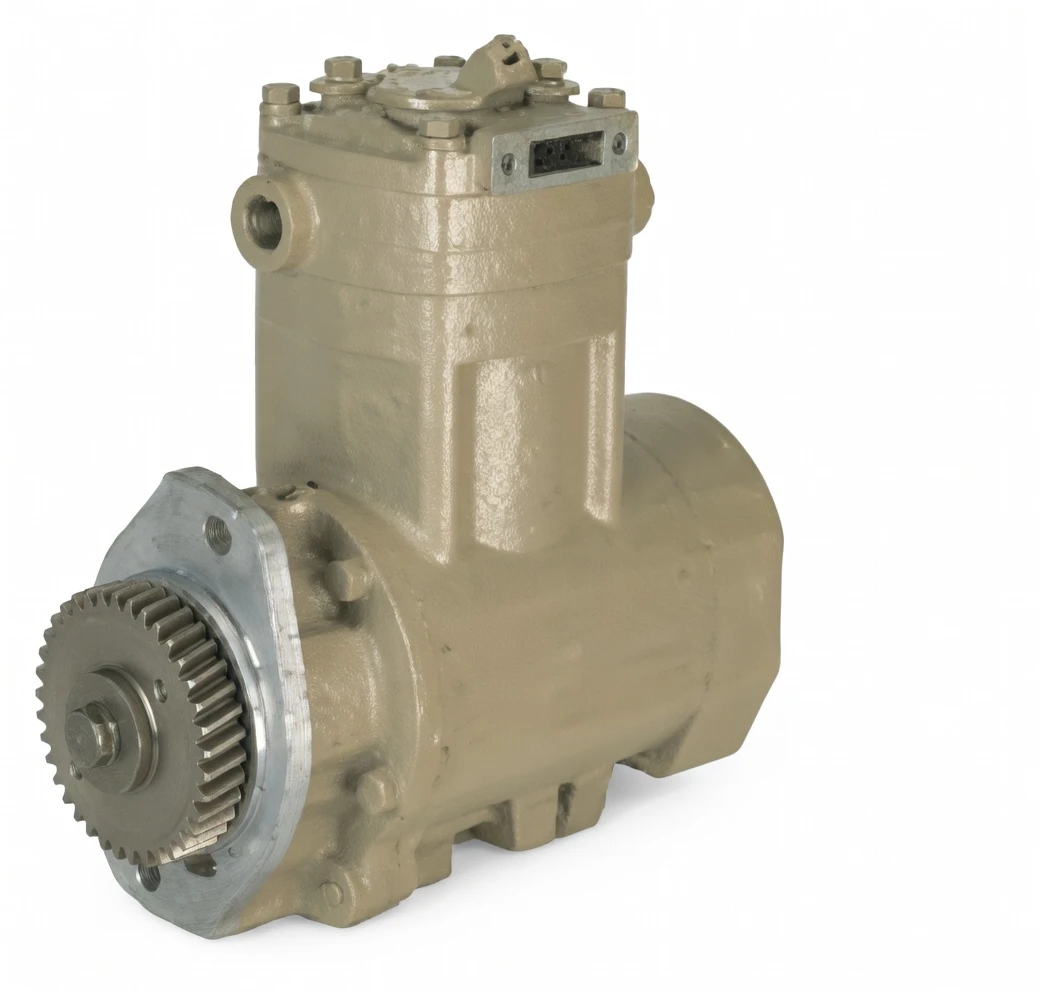

3558022X Air Compressor – Cummins Replacement
The 3558022X air compressor is a heavy-duty replacement designed for select Cummins diesel engine applications used in commercial truck air brake systems. This compressor is currently in stock and ready for shipment from Ace Motor Parts. Engine-driven air compressors provide the compressed air required to operate service brakes, parking brakes, and other pneumatic systems found on medium-duty and heavy-duty trucks.
This compressor is commonly used with Cummins C-Series diesel engines, including applications such as the 6C8.3 and C8.3 engines equipped with iron cylinder heads and through-drive power steering pump configurations. The design uses an 11-tooth spline shaft to drive the compressor while maintaining compatibility with common Cummins accessory drive systems.
Air compressors are essential to the operation of commercial vehicle brake systems. The compressor continuously builds and maintains pressure in the vehicle’s air reservoirs, allowing the braking system to function correctly and ensuring reliable stopping performance under normal operating conditions.
3558022X Air Compressor Overview
The 3558022X compressor is designed for demanding commercial truck service where durability and consistent airflow are required. The unit uses a single-cylinder compressor configuration with engine-supplied lubrication and water cooling to help manage operating temperatures during extended use.
This configuration allows the compressor to operate at engine speeds up to approximately 3000 RPM while maintaining reliable air delivery for braking systems and other pneumatic components used on heavy-duty vehicles.
Key Features
- Replacement compressor for select Cummins C-Series diesel engines
- Compatible with Cummins 6C8.3 and C8.3 engine platforms
- Single-cylinder compressor design for commercial truck service
- Engine-driven operation with engine-supplied lubrication
- Water-cooled compressor housing for improved temperature control
- 11-tooth spline shaft compatible with through-drive PS pump setups
Technical Specifications
| Part Number | 3558022X |
| Product Type | Air Compressor |
| Engine Applications | Cummins 6C8.3 / C8.3 C-Series diesel engines |
| Mounting Style | 2-Hole Flange Mount |
| Cylinder Configuration | Single Cylinder |
| Cooling Method | Water-Cooled |
| Lubrication | Engine Supplied |
| Displacement / Output | Approx. 13.2 CFM |
| Operating Speed | Up to 3000 RPM |
| Bore Diameter | 92.1 mm |
| Crankshaft Thread | M20 x 1.5 |
| Spline Shaft | 11-Tooth |
| Air Inlet Port | Left |
| Air Discharge Port | Front (Threaded) |
| Governor Port | 1/8"-27 NPT |
| Water Port Size | 3/8" NPT |
| Weight | 46 lbs |
| Typical Use | Commercial truck air brake systems |
3558022X Air Compressor Cross Reference
The 3558022X air compressor may also be referenced under the following part numbers:
- 3558052
- 3558052D
- 3558052RX
- 3558052X
- 3558052X-0R9764
- 3558052X-107914
- 3558052X-4P0676
- 3558052X-5010358
- 3558052X-85101164
- 3558052X-BEX
- 3558052X-BNE
- 3558052X-BW
- 3558052X-BW107509
- 3558052X-BWR107509
- 3558052X-BWZ
- 3558052X-BX
- 3558052X-BX107509
- 3558052X-BXR
- 3558052X-BXR107509
- 3558052X-R955
- 3558052X-R955107509X
- NT7002AS
- R9553558052X
Always verify compressor mounting configuration, port orientation, and application before ordering.
Common Vehicle Applications
- Kenworth trucks
- Freightliner trucks
- Peterbilt trucks
- Ford medium-duty trucks
- Navistar / International truck applications
- General Motors commercial truck platforms
Ace Motor Parts Tip
If you are unsure whether 3558022X is the correct compressor for your vehicle, check the identification tag on the original compressor or verify the part using your truck’s make, model, engine type, and VIN number.
