KN7050X 740 Air Compressor Haldex Replacement

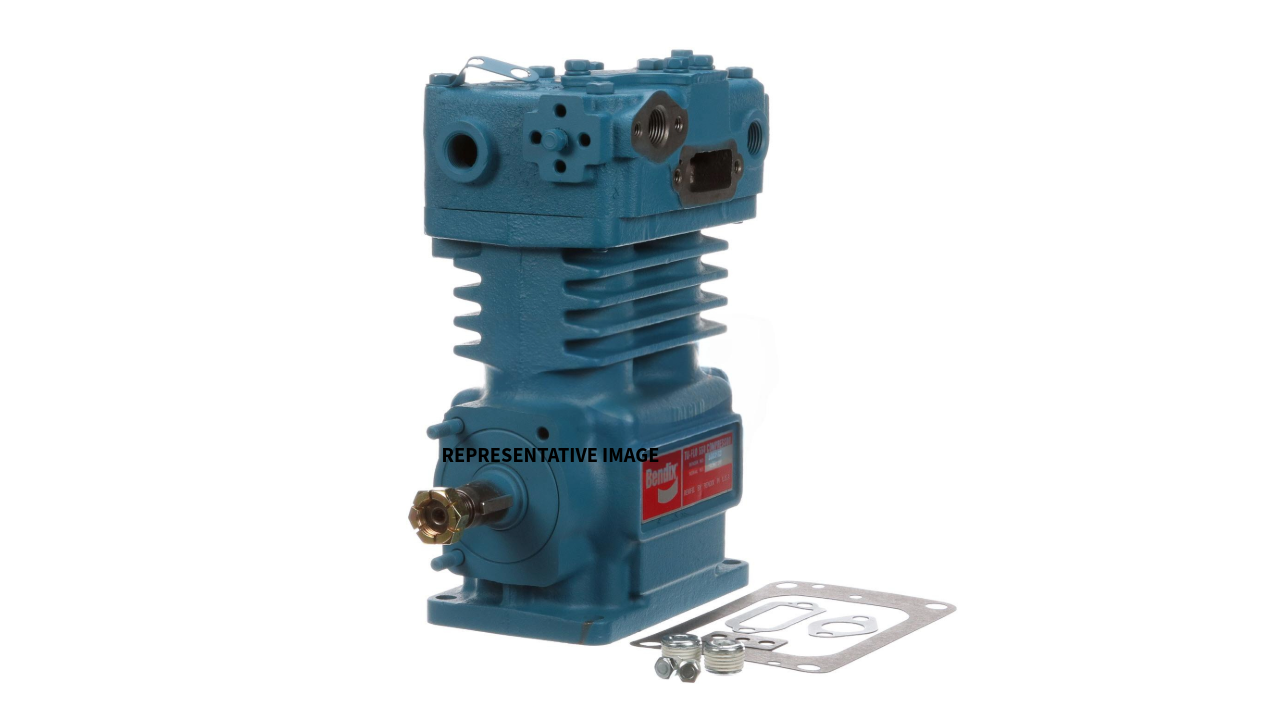

KN7050X EL740 Air Compressor – Haldex Style Replacement for Heavy-Duty Truck Air Brake Systems

The KN7050X EL740 air compressor is a heavy-duty replacement designed for commercial truck air brake systems used on a wide range of medium- and heavy-duty diesel vehicles. This compressor is stocked and ready to ship from Ace Motor Parts. Engine-driven compressors are responsible for supplying the compressed air required for brake actuation, parking brake operation, and other pneumatic systems used in commercial vehicles.

The EL740 compressor design uses a two-cylinder reciprocating piston configuration that produces reliable airflow for fleet vehicles operating under demanding conditions. With a belt-driven pulley system and durable cast housing, the compressor is well suited for trucks that require consistent air system pressure during daily operation.

Vehicle Applications

The KN7050X compressor is commonly used in commercial trucks, semi-tractors, vocational vehicles, and heavy equipment that rely on air brake systems. Applications often include:

• Heavy-duty commercial trucks
• Semi-tractors and highway tractors
• Vocational trucks used in construction and municipal service
• Medium-duty diesel trucks equipped with air brake systems

These compressors are typically installed using a 4-bolt base mounting configuration and operate through a pulley-driven belt system connected to the engine accessory drive.

EL740 Compressor Design

The EL740 compressor platform utilizes a two-cylinder piston design which compresses air in a single-stage process. The compressor features a combination air and water cooling system that helps regulate operating temperatures during continuous use.

The unit uses a left-side air inlet and discharge configuration when viewed from the front of the compressor. This layout is commonly used in commercial truck installations where space around the engine accessory drive is limited.

The compressor housing and internal components are designed for durability in demanding fleet environments where trucks operate for extended periods and require consistent air supply for braking and auxiliary air systems.

Key Features

• Direct replacement for EL740 and KN7050 air compressors
• Heavy-duty two-cylinder reciprocating piston compressor
• 4-hole base mount configuration
• Pulley (belt) driven accessory drive
• Air and water cooled compressor design
• Left-side air inlet and discharge configuration
• Designed for commercial truck air brake systems
• Reliable performance in fleet and vocational vehicles

Technical Specifications

Navistar OEM Cross Reference

CAT OEM Cross Reference

GM OEM Cross Reference

KN7050X / EL740 Compressor Cross Reference

Always confirm mounting configuration, pulley alignment, and engine compatibility before ordering.

The Role of the Air Compressor in Truck Brake Systems

The air compressor is a critical component in commercial vehicle braking systems. It continuously generates compressed air which is stored in reservoirs and used when the driver applies the brakes.

If a compressor begins to lose efficiency due to internal wear, the air system may take longer to build pressure. Replacing a worn compressor helps restore proper braking system operation and ensures reliable air supply for both brake actuation and auxiliary air components.
