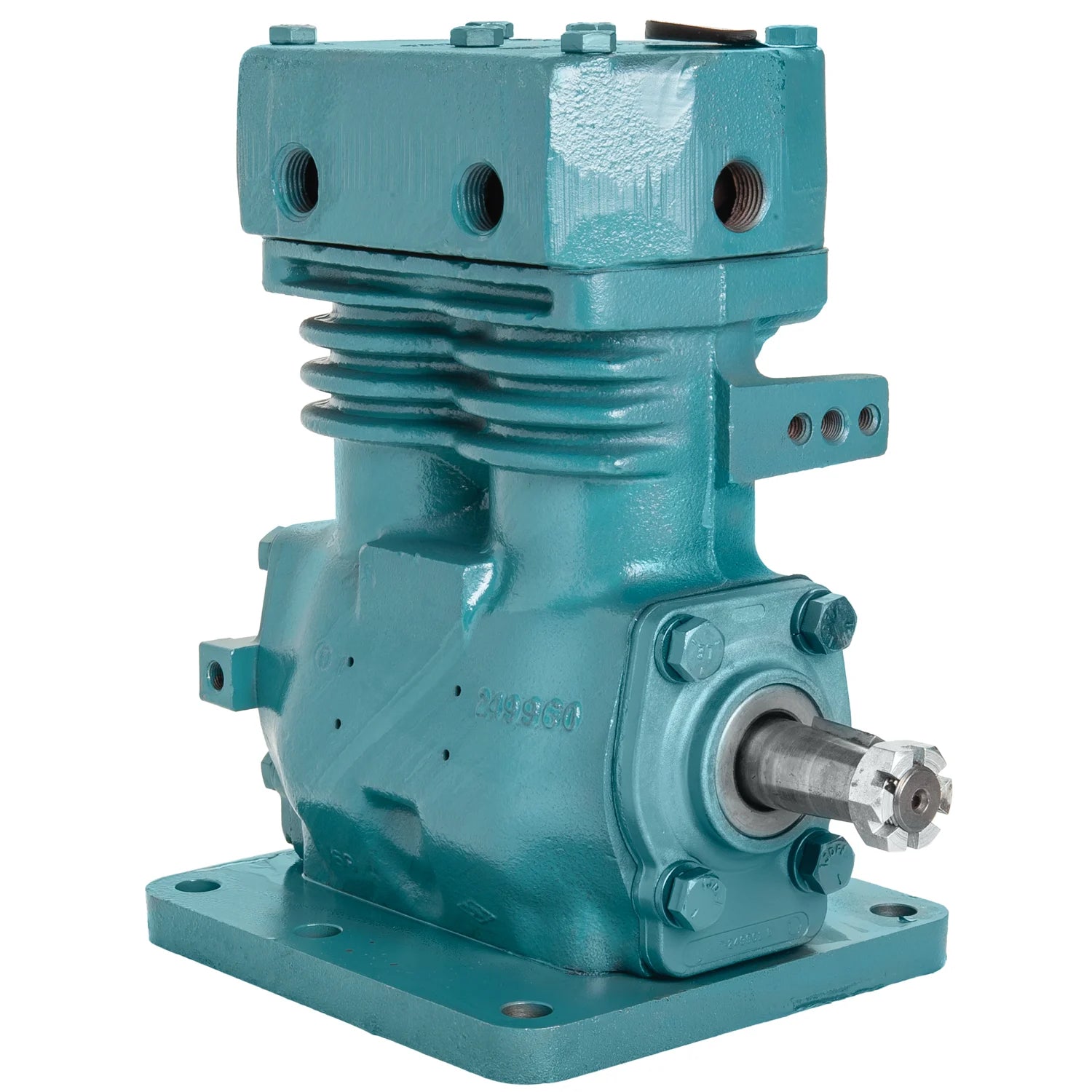

286585X TF-501 Air Compressor - Wide Base Ford Pulley Drive Replacement
The 286585X TF-501 air compressor is a heavy-duty replacement compressor designed for Ford truck and Caterpillar 3208 engine applications requiring a wide base 6-hole mounting configuration. Built for dependable air brake system performance, this pulley-driven compressor delivers reliable compressed air production for commercial trucks operating in demanding environments.
Featuring a durable twin-cylinder reciprocating piston design, this TF-501 compressor is engineered to support continuous-duty commercial vehicle applications including heavy trucks, semis, and vocational equipment. Its wide base mounting arrangement and left-side inlet/outlet configuration are commonly found in Ford and Caterpillar powered platforms.
Compressor Features
- TF-501 wide base replacement air compressor
- Designed for Ford heavy truck applications
- Compatible with Caterpillar 3208 engine platforms
- 6-hole wide base mounting design
- Pulley-driven compressor configuration
- Water and air cooled construction
- Heavy-duty twin-cylinder compressor
- Approximately 12 CFM air displacement at 1250 RPM
- Built to meet demanding commercial truck requirements
- Installation-ready heavy-duty design
- Approximate shipping weight: 45 lbs
- In stock and ready to ship
Technical Specifications
| Part Number | 286585X |
| Compressor Model | TF-501 Pulley Drive |
| Vehicle Applications | Ford Heavy Trucks / Caterpillar 3208 |
| Mounting Style | 6-Hole Wide Base Mount |
| Drive Type | Pulley Drive |
| Cooling Type | Water/Air Cooled |
| Cylinders | 2 |
| Bore x Stroke | 2.625 in x 1.50 in |
| Displacement @1250 RPM | 12 CFM |
| Displacement Per Revolution | 16.5 cu in |
| Maximum RPM | 3000 RPM |
| Horsepower @3000 RPM /100 PSI | 4.9 HP |
| Air Inlet Location | Left Side |
| Air Outlet Location | Left Side |
| Discharge Type | Flange |
| Minimum Unloader Pressure | 60 PSI |
| Approximate Weight | 45 lbs |
Ford & Caterpillar Commercial Truck Applications
This TF-501 style compressor is commonly used on Ford heavy-duty truck applications and Caterpillar 3208 powered vehicles requiring a wide base pulley-driven compressor configuration. These compressors are designed to maintain proper compressed air levels for air brake systems and other pneumatic truck functions.
Typical applications include commercial trucks, semis, vocational vehicles, fleet trucks, and other heavy-duty transportation equipment operating in demanding road and worksite conditions.
Common Compressor Failure Symptoms
- Slow air pressure recovery
- Air system unable to maintain pressure
- Oil carryover into air tanks
- Excessive compressor operating temperature
- Air brake warning indicators
- Unusual compressor vibration or noise
Cross Reference Numbers
286585, 04625286592X, BXC286592X, 102822, 289751
Important Verification Information
Please verify your original compressor number, mounting style, pulley arrangement, port configuration, and vehicle application before ordering. Variations may exist depending on engine type, mounting bracket setup, and truck manufacturer specifications.
If you need help confirming fitment for your application, contact us before ordering and our team will be happy to assist.
