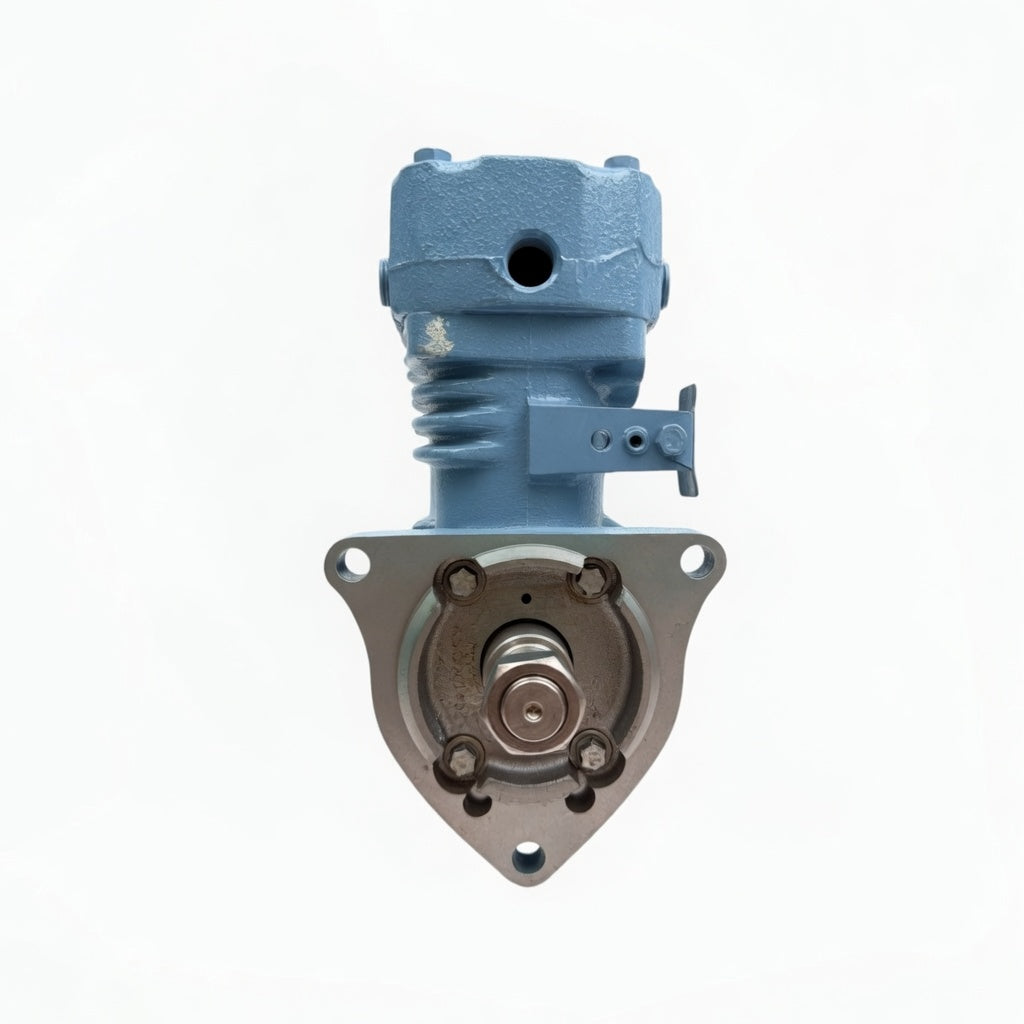

286547X TF 501 Air Compressor Bendix Replacement
📞 Phone Order Required
This item is available by phone order only.
Please call us at 828-242-3795 to place your order.
Couldn't load pickup availability
- Description
- Reviews
286547X TF-501 Air Compressor - Mack Foxhead Replacement Compressor
The 286547X TF-501 air compressor is a heavy-duty replacement compressor engineered for Mack V8 engine applications using the classic Foxhead compressor configuration. Designed to provide dependable air pressure for commercial truck air brake systems, this compressor delivers reliable performance for demanding highway and vocational truck service.
Built with a twin-cylinder reciprocating piston design, the TF-501 platform has long been recognized for durability and steady air delivery in heavy-duty transportation applications. This flange-mounted engine-driven compressor is designed to meet the performance demands of Mack powered trucks operating in severe working environments.
Key Features
- TF-501 Mack Foxhead replacement compressor
- Twin-cylinder reciprocating piston design
- Designed for Mack V8 engine platforms
- Engine-driven flange mount configuration
- Approximately 12 CFM air displacement at 1250 RPM
- Left-side air inlet and outlet configuration
- Flange discharge arrangement
- Heavy-duty cast construction
- Installation gasket set included
- Designed to meet OEM operating standards
- Approximate shipping weight: 48 lbs
- In stock and ready to ship
Technical Specifications
| Part Number | 286547X |
| Compressor Model | TF-501 Mack Foxhead |
| Compressor Type | Single-Stage Twin Cylinder |
| Mounting Style | Flange Mount |
| Drive Type | Engine Driven |
| Cylinders | 2 |
| Bore x Stroke | 2.625 in x 1.50 in |
| Displacement @1250 RPM | 12 CFM |
| Displacement Per Revolution | 16.5 cu in |
| Maximum RPM | 3000 RPM |
| Horsepower @3000 RPM /100 PSI | 4.9 HP |
| Cooling Type | Water/Air Cooled |
| Air Inlet / Outlet | Left / Left |
| Discharge Type | Flange |
| Minimum Unloader Pressure | 60 PSI |
| Approximate Weight | 48 lbs |
Designed for Heavy-Duty Mack Applications
This TF-501 style compressor was developed for Mack V8 powered commercial trucks and vocational equipment requiring dependable compressed air for air brake operation. The Foxhead compressor design became widely used in older heavy-duty Mack applications because of its durability and steady air production under continuous operating conditions.
Typical applications include highway tractors, vocational trucks, construction trucks, dump trucks, and other commercial vehicles equipped with Mack V8 engine platforms.
Common Symptoms of Compressor Wear
- Slow air pressure recovery
- Excessive compressor operating temperature
- Oil carryover into the air system
- Low air brake system pressure
- Excessive compressor noise or vibration
- Frequent air governor cycling
Cross Reference Numbers
286574X, 286574, 102953, 04625286563X, 175286563X, HVG286563, 286104, 272CC
Important Fitment Information
Please verify your original compressor number, mounting arrangement, cooling configuration, port orientation, and engine application before ordering. Variations may exist depending on Mack engine series and truck configuration.
If you need help confirming compatibility for your application, contact us before ordering and our team will be happy to assist.
