228139X TF 500 Air Compressor Bendix Replacement
📞 Phone Order Required
This item is available by phone order only.
Please call us at 828-242-3795 to place your order.
Couldn't load pickup availability
- Description
- Reviews
228139X TF-500 Air Compressor Bendix Replacement

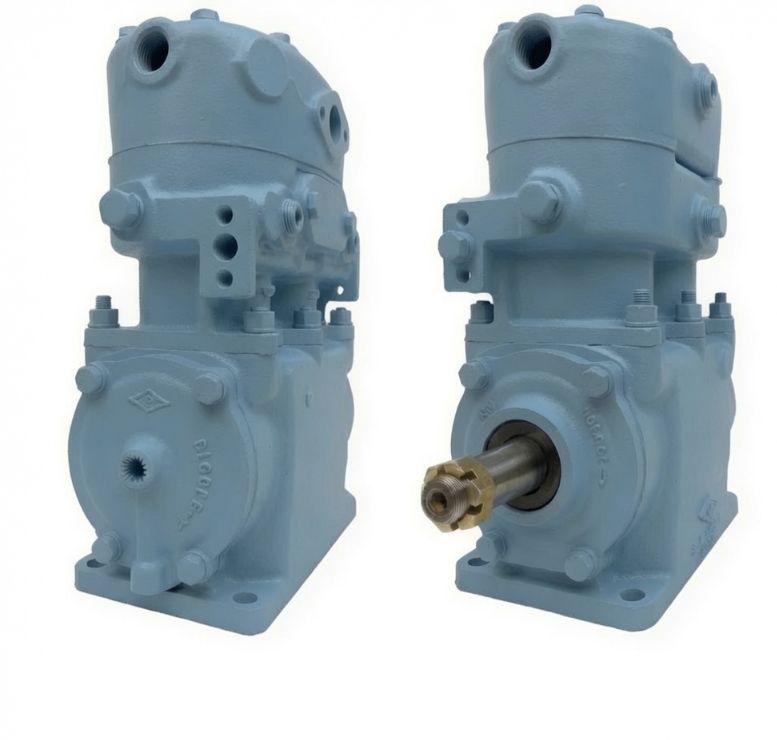

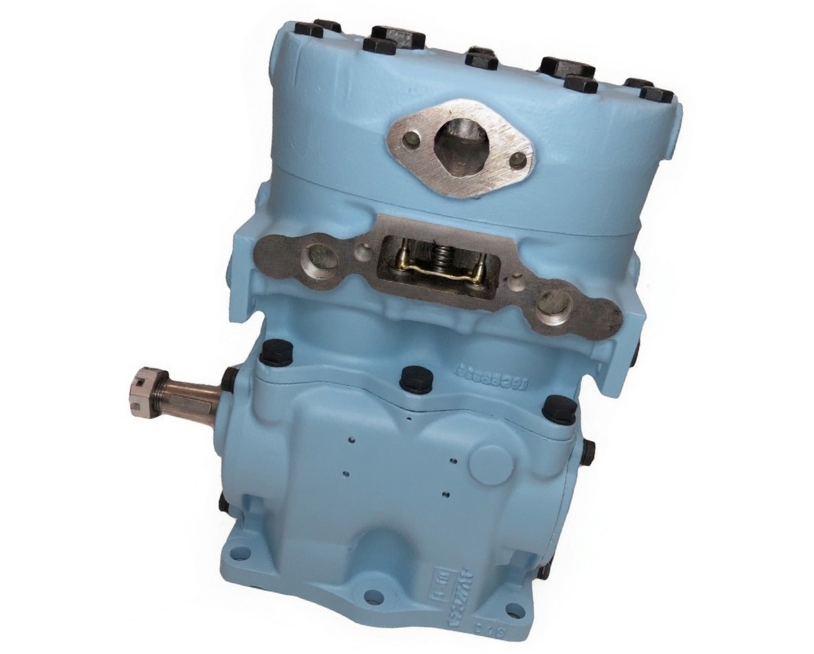

The 228139X TF-500 Air Compressor is a remanufactured Bendix-style replacement compressor used on commercial trucks, trailers, and fleet-class vehicles requiring a water-cooled, pulley-driven air brake compressor. This unit is designed for TF-500 air systems using a 4-hole base mount and right-hand air inlet and outlet orientation when viewed from the rear.
This compressor is commonly used in heavy-duty air brake applications where reliable air supply is required for braking performance, air suspension, and related pneumatic systems. Please verify your original part number, compressor tag, mounting style, and port locations before ordering.
Product Details
| Specification | Details |
|---|---|
| Model | TF-500 Pulley Drive Compressor |
| Cooling | Water Cooled |
| Drive Type | Pulley / Belt Driven |
| Mounting | 4-Hole Base |
| Air Inlet | Right Side, Viewed From Rear |
| Air Outlet | Right Side, Viewed From Rear |
| Discharge Type | Flange |
| External Shaft Length | 2.14 in. |
| Cylinders | 2 |
| Bore | 2.5 in. |
| Stroke | 1.6875 in. |
| Displacement @ 1250 RPM | 12 CFM |
Operating Specifications
| Feature | Specification |
|---|---|
| Maximum RPM | 3000 WC / 2400 AC |
| Coolant Flow | 2.5 GPM |
| Air Flow Required | 250 CFM |
| Horsepower @ 1250 RPM | 2.3 HP |
| Maximum Inlet Temperature | 250°F |
| Maximum Discharge Temperature | 400°F |
| Unload Pressure | 60 PSI |
| Oil Pressure at Idle | 5 PSI |
| Maximum Oil Pressure | 15 PSI |
| Oil Capacity | 0.53 qt. |
Line Connection Sizes
| Connection | Size |
|---|---|
| Discharge Line | 5/8 in. OD |
| Coolant Line | 1/2 in. OD |
| Oil Supply | 1/4 in. OD |
| Oil Return | 5/8 in. OD |
| Air Inlet | 5/8 in. ID |
Application Information
| Application | Details |
|---|---|
| Vehicle Type | Commercial trucks, trailers, and 18-wheelers using TF-500 air compressor systems |
| System Type | Water-cooled, pulley-driven air brake compressor system |
| Mounting Style | 4-hole base configuration |
| Port Orientation | Right-hand air inlet and right-hand air outlet, viewed from rear |
| Best Use | Ideal for fleet-class vehicles requiring a TF-500 pulley-mounted compressor with matching mounting and port layout |
Cross Reference Numbers
| Cross Reference | Notes |
|---|---|
| 228139 | Bendix / aftermarket reference number |
| 228139X | Remanufactured compressor reference |
| 227321 | Related TF-500 cross reference |
| 227320TP | Related compressor reference |
| 226282 | Related compressor reference |
| 227544 | Related compressor reference |
| 227675 | Related compressor reference |
| 228359 | Related compressor reference |
| 228360 | Related compressor reference |
| 228369 | Related compressor reference |
| 229164 | Related compressor reference |
| 282824 | Related compressor reference |
| TF-500 | Compressor model family |
| BX227320X | Aftermarket / replacement reference |
| 745227320 | Aftermarket / replacement reference |
| 04625227320X | Aftermarket / replacement reference |
Important Fitment Note
Air compressors can look similar but may vary by mounting pattern, pulley drive setup, shaft length, discharge style, and port orientation. Please compare your original compressor tag number and physical configuration before ordering. If your compressor tag is missing, contact us with your truck make, model, engine information, and VIN so we can help verify the correct unit.
Why Choose a Remanufactured Compressor?
A properly remanufactured TF-500 compressor allows you to replace the failed unit while keeping the correct original-style configuration for your air brake system. This helps avoid unnecessary changes to mounting, plumbing, belt alignment, or air line routing when the original compressor style is still the best match for the vehicle.
Core charge applies. Please retain your old compressor core for return when required.
