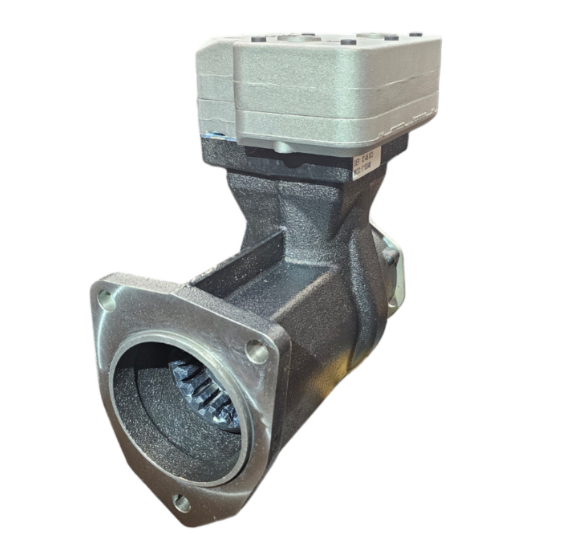

9111535400 Wabco Compressor New Repacement

9111535400 New WABCO-Style Mack Air Compressor

Get dependable air system performance with this brand new replacement compressor for compatible Mack applications. This WABCO SS318-style unit features an 85 mm, single-cylinder design and an 11-tooth through-drive for powering a compatible downstream accessory.

No core return is required. Install the replacement without packing and shipping your old compressor back, saving time and return costs.

Specifications

• Part number: 9111535400
• Compressor type: WABCO SS318-style, single cylinder
• Cylinder bore: 85 mm
• Stroke: 56 mm
• Swept volume: 318 cc
• Air delivery: 18.7 CFM at 1,250 RPM
• Drive: 11-tooth through-drive
• Mounting: Extended flange
• Cooling: Water cooled
• Lubrication: Engine oil fed
• Drive gear: Supplied
• Included: Installation gasket kit

Port Connections

• Air inlet: 25 mm
• Compressed-air outlet: 1/2"-14 NPT
• Governor/unloader port: 1/8"-27 NPTF
• Coolant inlet and outlet: 3/8"-18 NPT

Reference Numbers

Replaces or cross-references WABCO 9111530186, 9111530550, 9111535400, 9111535407 and 9111535550; Mack 85040638, 303GB4225T2 and 303GB5129; and Volvo MID9111535400. Reference numbers are provided to help identify the application. Verify the part number, mounting flange, ports and through-drive configuration against your original compressor before ordering.
